When looking at the concealed face of the Innova system, the door opens inwards or away from you.
This concealed jib door system complements the other Selo systems, to provide you with a comprehensive range to fulfil your design criteria and aspirations, whatever your situation or door configuration.

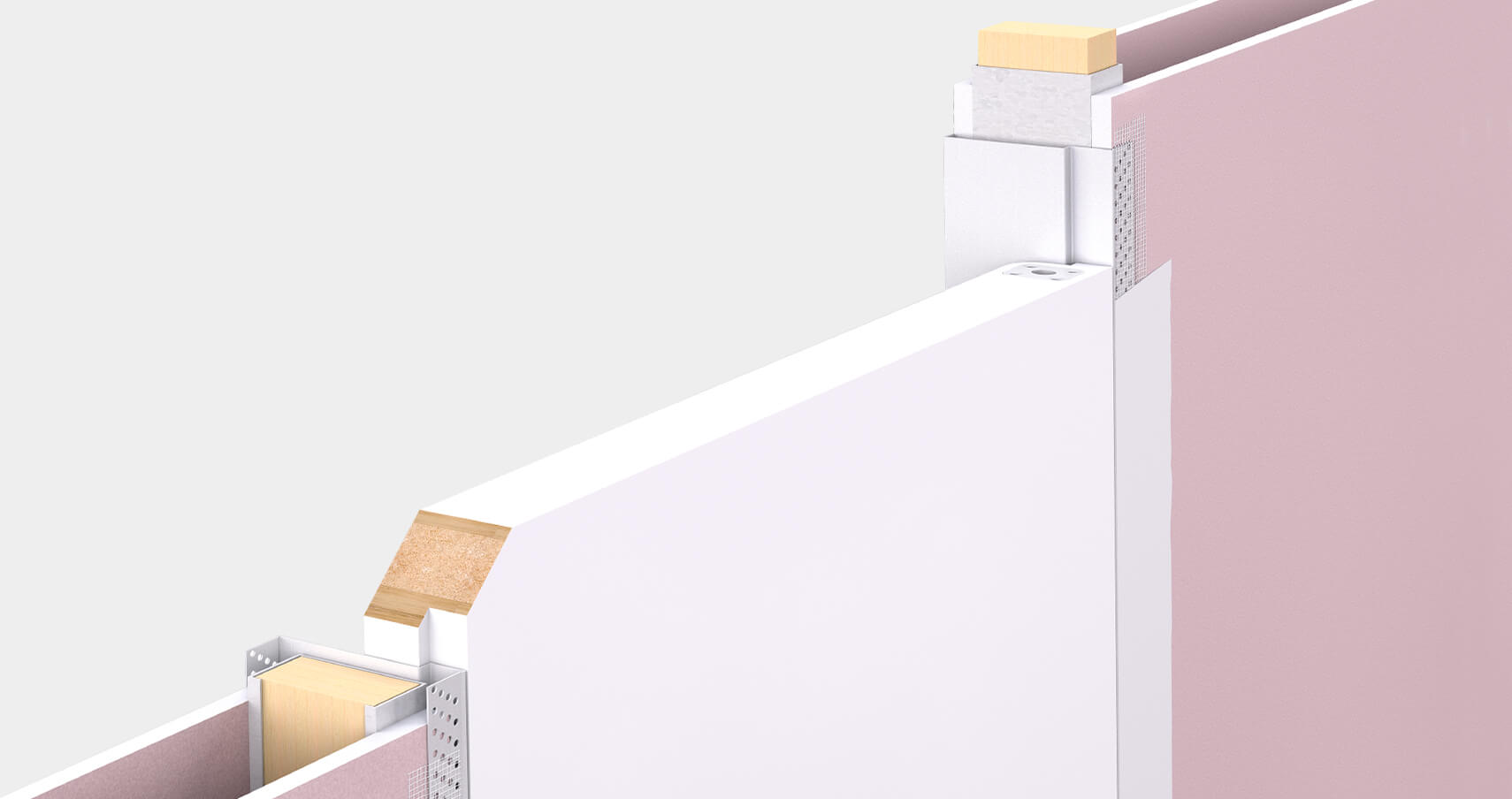

The Innova concealed jib design comprises a single steel profile that closes off the end of your wall. The reinforced, rolled-edge side flanges are perforated for easy fixing. The wall and jamb are then plastered or jointed over to give a continuous surface right up to the door.
Innova can be installed as a single door leaf.

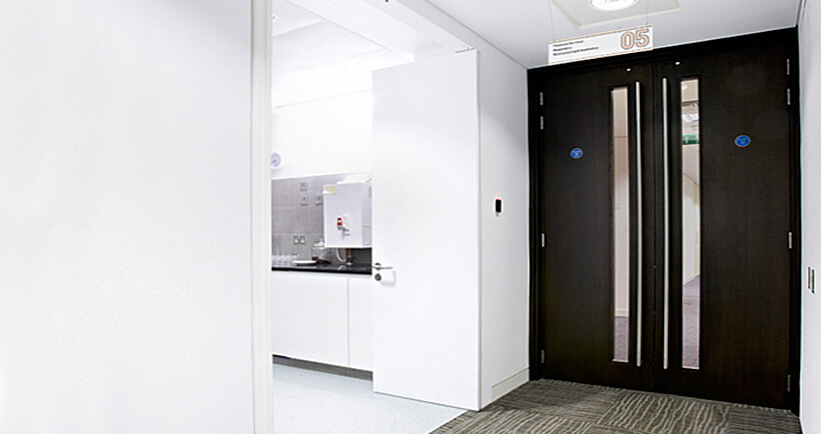

Innova can be installed as a single door leaf.
All Selo door leafs are solid timber core and lipped on all 4 sides with hardwood lippings. Doors are then cut out for hinges and seals where required and sent to site in their ‘ready to fit’ form.
The frame is pre-etched and simply requires a metal primer to be applied to the frame before painting.
The frame can be prefinished in a polyester powder-coated finish to a standard RAL colour.
Provided pre-primed for painting on site.
The door leafs can be provided pre-painted to a standard RAL colour.
Laminate coating for a more robust finish.
The door leafs can be veneered in any species of timber veneer and then lacquered in a 30% clear sheen.

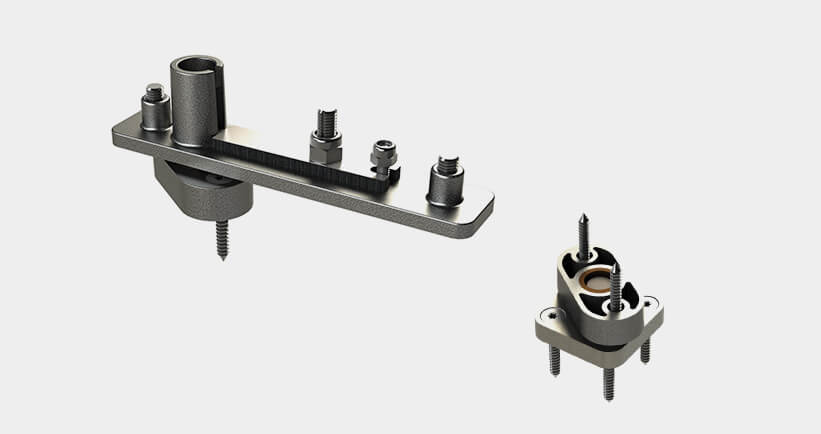

Manufactured from stainless steel with self lubricating phospher bronze inserts fitted to the sockets providing maintenance free usage.
The top center is provided pre-fitted to the Innova frame head and the door leaf will be provided with cut outs for the sockets. The base pin is mounted onto the floor. No floor box ir required and the pin is completely concealed.

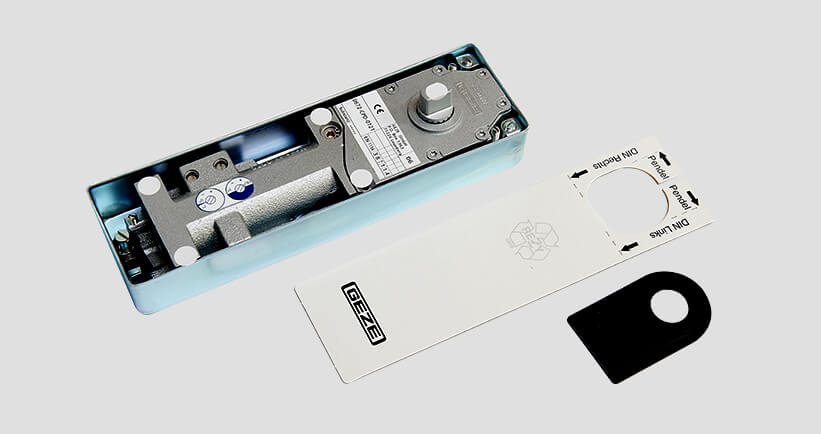

If there is a requirement for the door to be self closing a floor spring is provided.
The floor spring is available with a standard cover plate or if you want to enhance the aesthetics it can be provided with a floor tray. This is infilled with the surrounding floor finish which virtually hides the floor spring.
The frame is prepared to receive the lock or latch that will be used in the door. Almost all standard lock and latch types are compatible with the frame.
The strike plate is included with the doorset, the actual lock or latch is not. The lock/latch is fitted to the door on site.
The latch plate is surface mounted onto the frame.
The latch plate is surface mounted onto the frame.
The non-fire rated Innova doorset has a 54mm solid core door and requires no intumescent seals.
The Innova doorset has been fully fire tested to 30 minutes in single configuration. Double door configurations are not fire tested.
Important note
To ensure the fire integrity is not compromised it is important that the wall partition is suitable and also the interface between the partition and doorset is correct.
At Selo we are able to provide advice on your partition and interface details to ensure the fire regulations are met properly in conjunction with the Selo doors. Please contact us on 020 3880 0339 where our Project Consultants would be glad to assist.

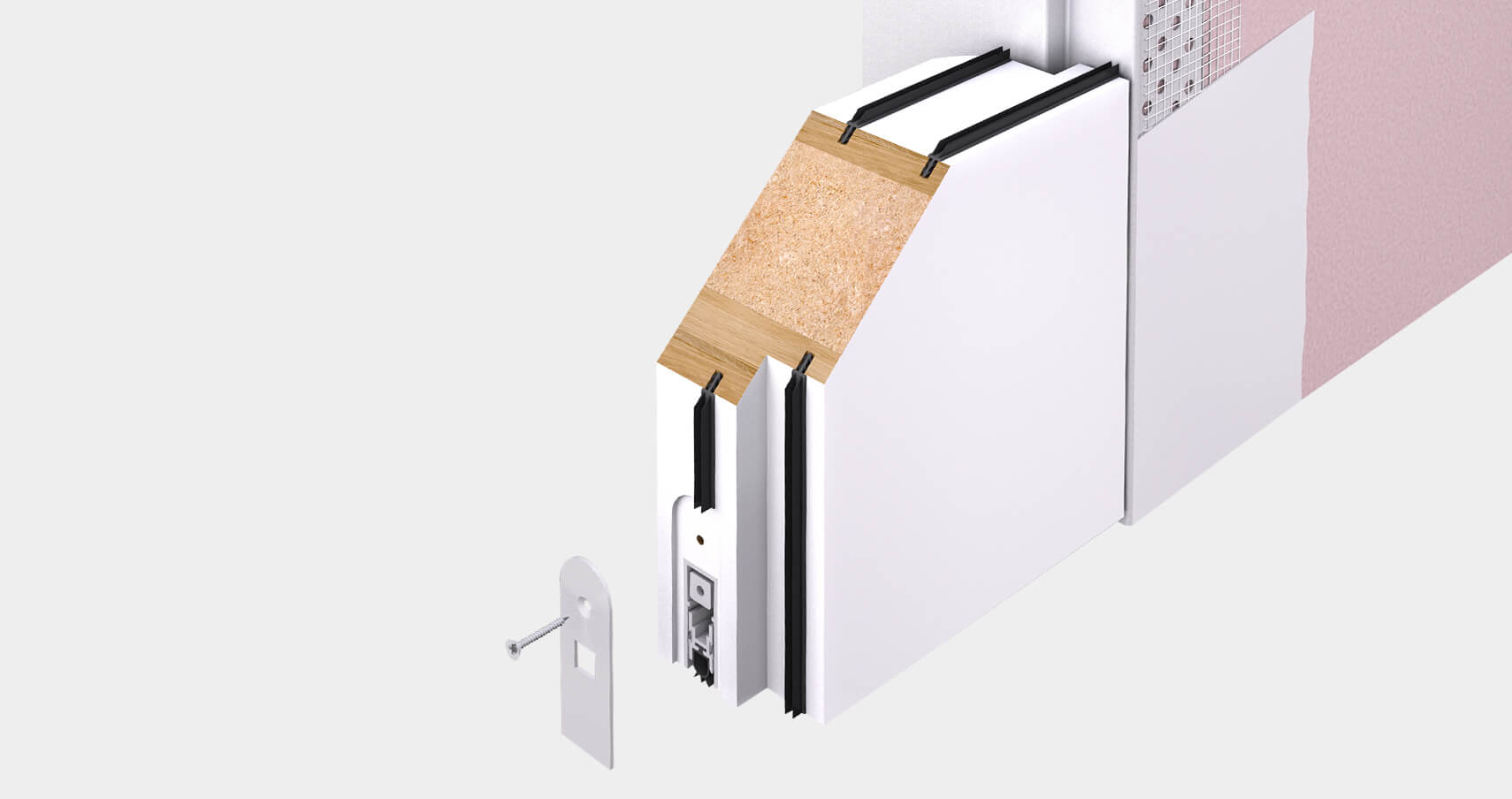

The Innova doorset has been acoustically tested an can be provided with a rating of up to 34dB.
The Innova doorset has been acoustically tested an can be provided with a rating of up to 32dB in conjunction with an FD30 fire rating.
The Innova door leafs can be supplied with vision panels fitted. They are factory fitted and can be supplied with clear or satin glass and a surface mounted or flush glazing bead.
A standard surface mounted skirting can be applied in the usual fashion. The skirting needs to finish at the edge of the frame.
A flush skirting can also be used. This will need to be specified to ensure the frames are prepared to suit this detail.
A flexible system for any application
Innova can be fitted to either a steel or timber stud partition and solid masonry walls:
IMPORTANT
The illustrations shown are NON FIRE RATED
Please consult a wall designer for fire-rated details
For CAD Drawings, BIM Objects, Installation Guides, and Product Videos visit the Selo Resources area.
For inward-opening concealed frame doorsets – View the Arriva technical details.
