A fully integrated ’tiled-over’ riser door system designed to create a flush, sleek finish, concealing the doors into the wall.
Pre-hung, pre-fabricated four-sided doorset ready to be fitted straight into the partition and finished with a tiled wall covering.
Maximum Door Sizes (May vary with fire rating)
Height – 2869mm
Width – 1000mm
Minimum Door Sizes
Height – 1250mm
Width – 450mm
Max. Surface Thickness
Tiled – 12mm
Our metal-leaf doorset systems have been extensively bi-directionally tested for resistance to fire. This means that the doorset is fire-rated using both sides of the door ensuring complete protection.
The Ligna tiled doorset has been certified by Exova for fire resistance and air leakage.
FD120 Fire Rated
Max. Door Leaf – 2608x1035mm or 2875x939mm
The Ligna tiled doorset has been tested for acoustic performance by BM Trada.
32/35/36dB Acoustic Rated
With Rockwool core

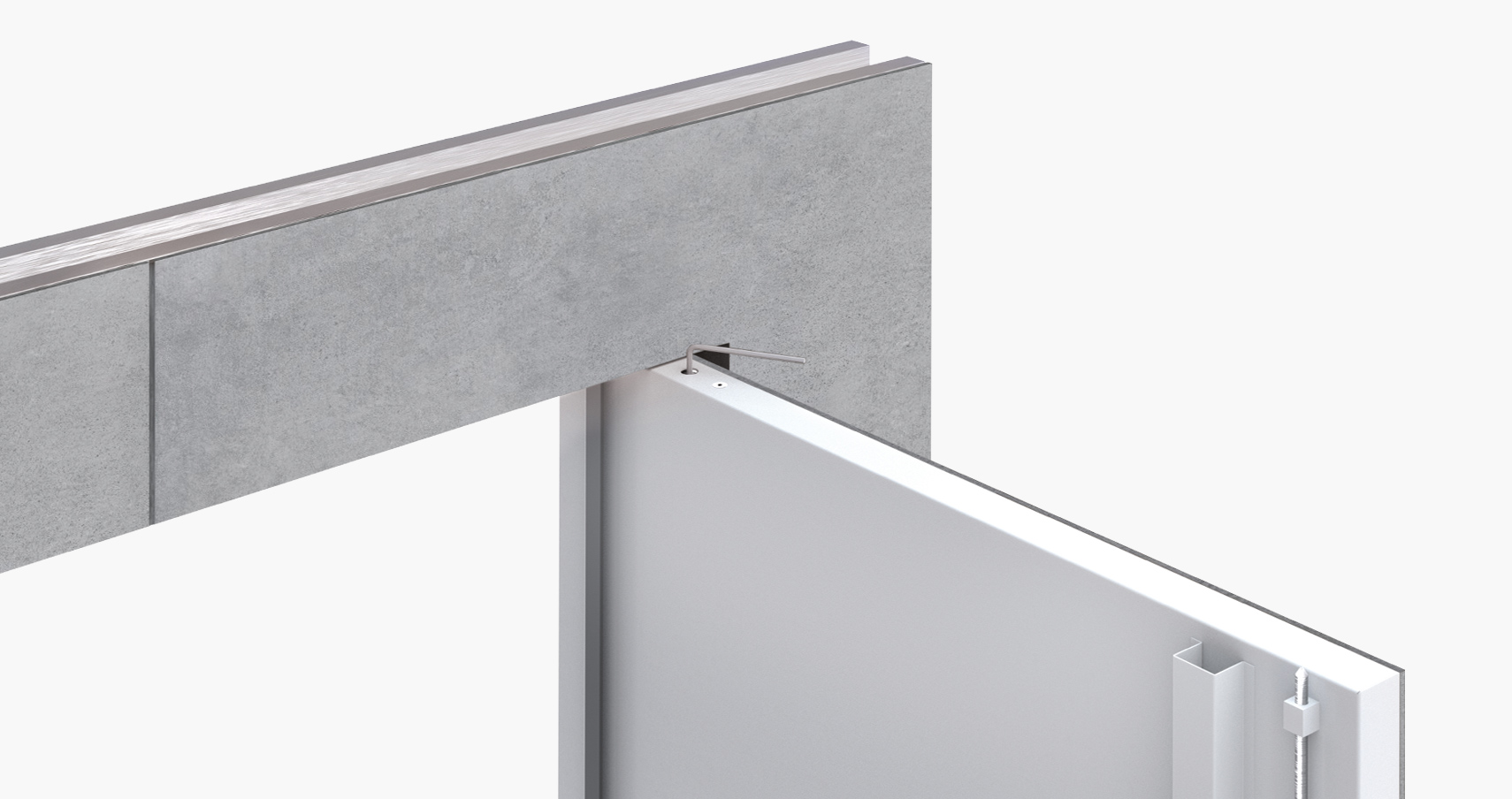

Manufactured from stainless steel with self-lubricating sintered bearings fitted to the sockets, providing maintenance-free usage.
The hinge and base pin are provided pre-fitted to the Ligna frame. The door leaf is also provided with cut-outs ready for the sockets. No floor box is required and the pin is completely concealed.
The 3 point locking system is operated by a square key budget lock. The door is supplied with a stainless steel lock insert which does away with ugly plastic bungs and stops scratches around the hole from using the key.

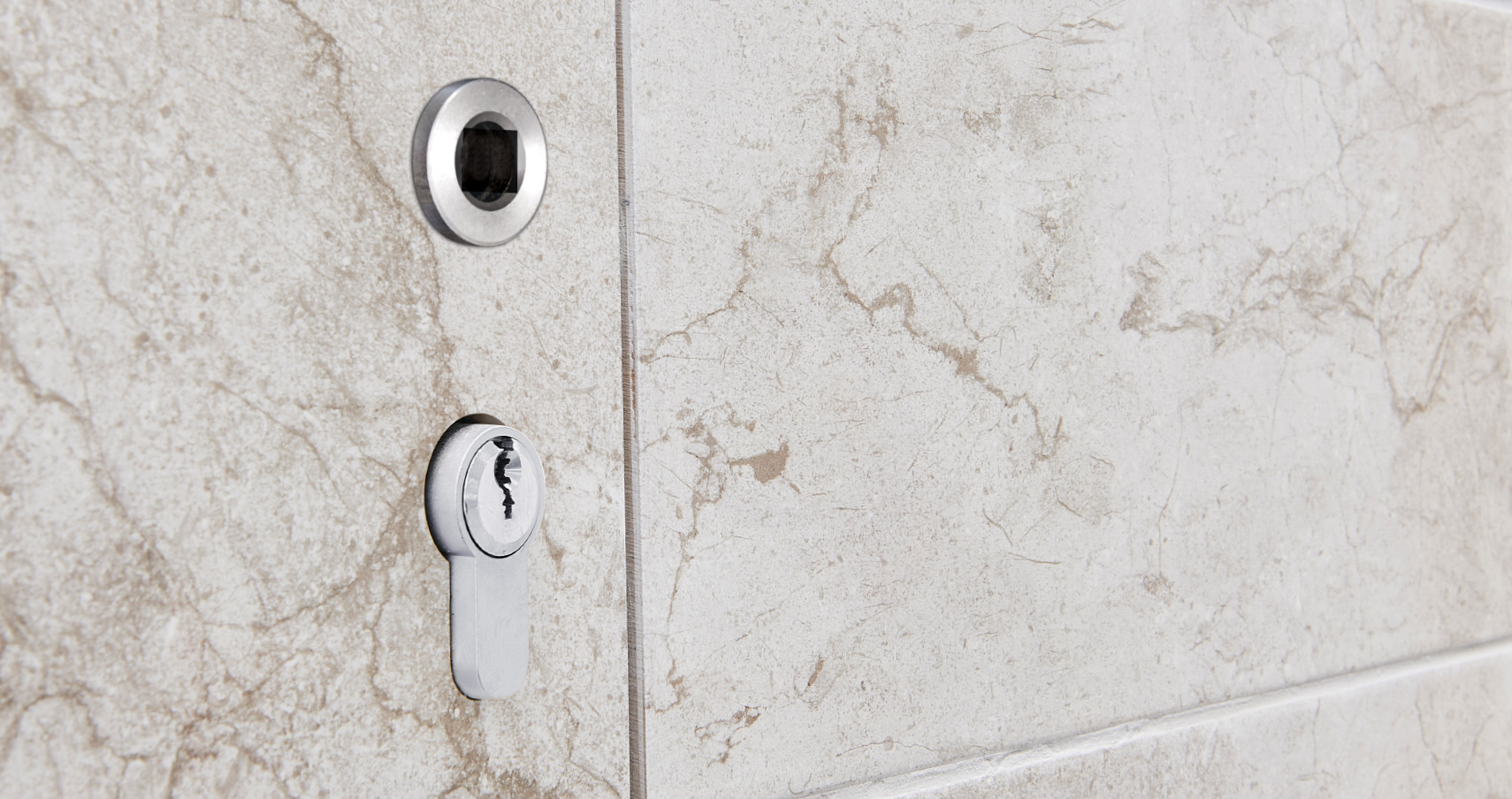

For situations where you require higher security and the ability to lock the door with a euro cylinder can be used.

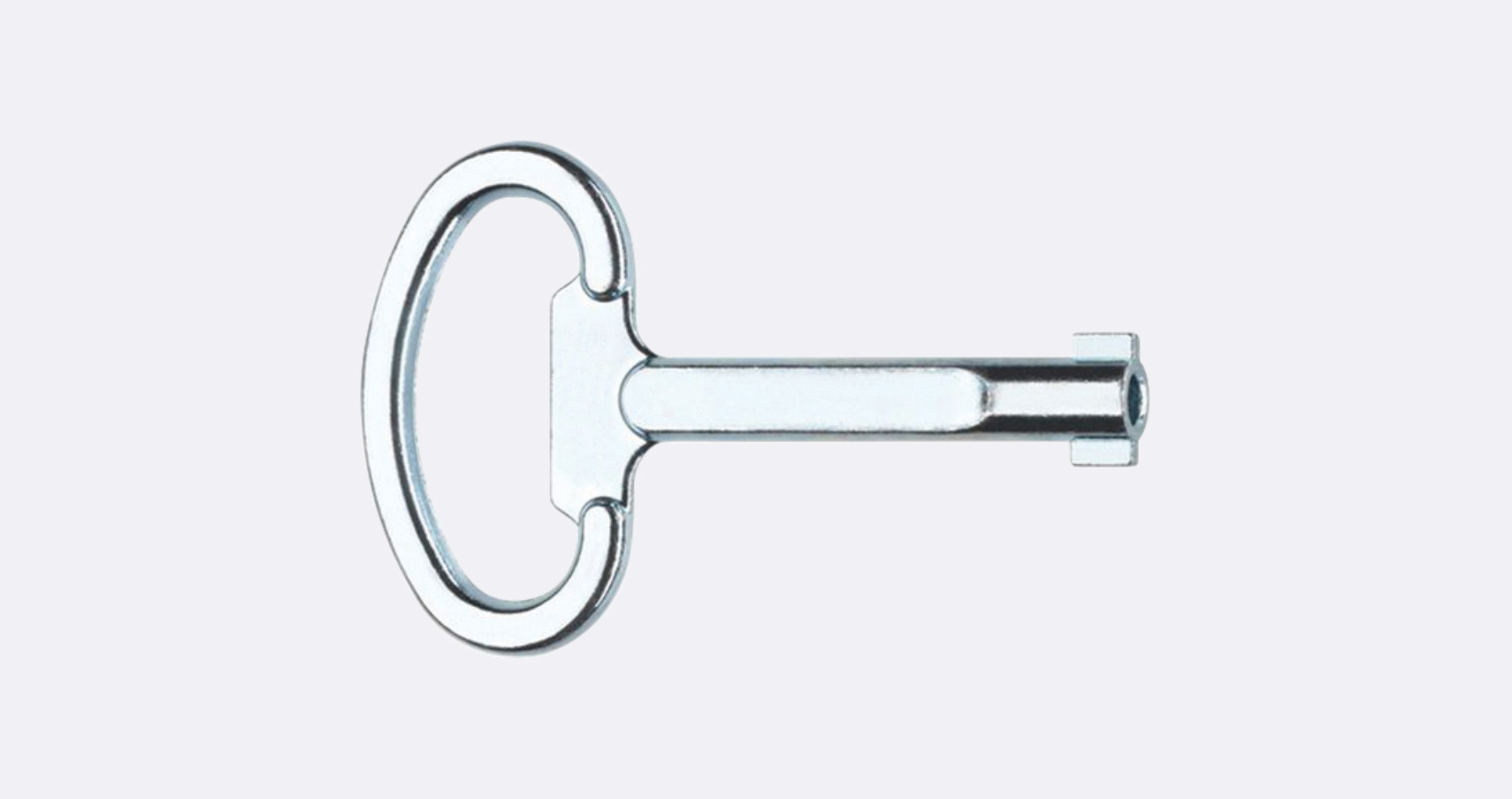

The 3 point locking system is operated by a 5mm bit key lock. The key can be held in the lock and used as a handle.
The Ligna doorset comes pre-finished in a powdercoated finish to a standard RAL colour of your choice.
Available to suit the Ligna door leaf.
On confined, busy sites doors need to be carried by hand a lot of the time. To keep the doorset protected, Ligna comes fully protected with polystyrene corners and heat shrink wrapped in heavy duty polythene.
We understand the demanding requirements of a construction site and the damage that can be done once the doorset is installed if not properly protected.
We can provide corrugated plastic protection sheets to be taped to the door faces, protecting them from scuffs and scratches.
