High-performance, concealed lift shaft doors designed to meet the new requirements for:
Access, Inspection, and Rescue standards as detailed in EN 81-20 and EN 81-50.
The Quadra+ Lift Shaft can be built to suit the specific requirements of your application, Emergency Escape Doors, Machine Room & Shaft Access Doors, Pulley Room Access Doors, Inspection Doors
Choose the right Lift Shaft Door for your buildings requirements:
Quadra+® Lift Shaft

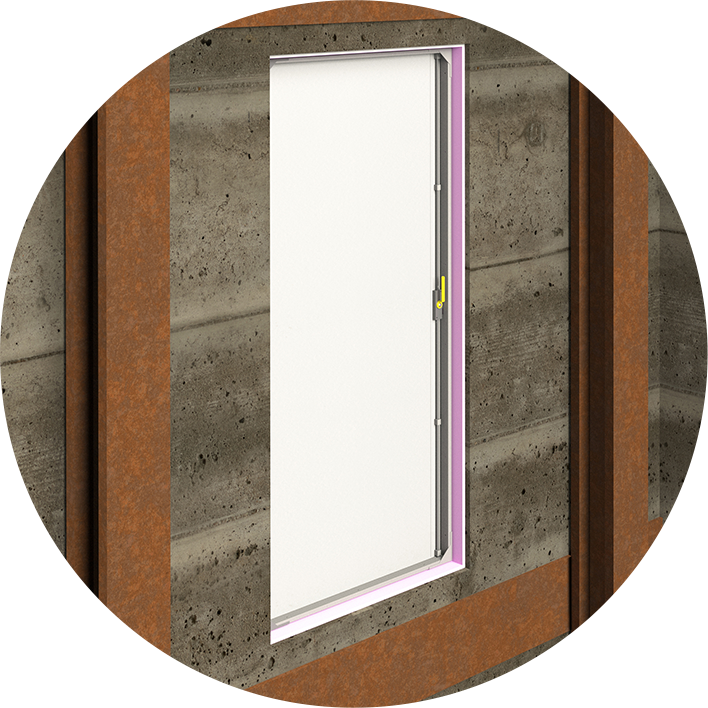

Emergency doors for means of escape from within the Lift Shaft. The yellow Emergency-handle allows the door to be opened from the inside.
Min. Height – 1800mm
Min. Width – 500mm
Quadra+® Lift Shaft

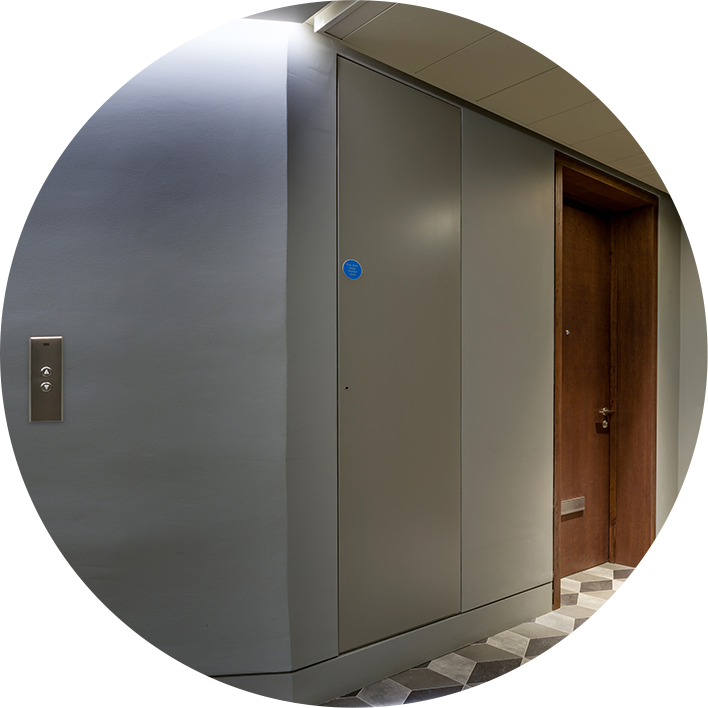

Service access points to allow authorised personnel entry to restricted access rooms such as Machine Rooms or Lift Shafts.
Min. Height – 2000mm
Min. Width – 600mm
Quadra+® Lift Shaft
Machine or Pulley Rooms are used only for accommodating the equipment necessary for the operation of a lift, comprising solid walls, ceiling, and door designed to allow clear passage.
Min. Height – 1400mm
Min. Width – 600mm
Quadra+® Lift Shaft
The law requires that all Lifts carrying people should be thoroughly examined at least every six months. In order to facilitate this; Inspection doors are placed in key locations throughout the Lift Shaft.
Min. Height – 500mm
Min. Width – 500mm
Quench® has the fire-stopping material built into the frame for a faster, safer installation removing potential fall risk and hazardous working environments as well as assisting in mitigating risk from an installation perspective, giving assurance for both contractors and building control.
